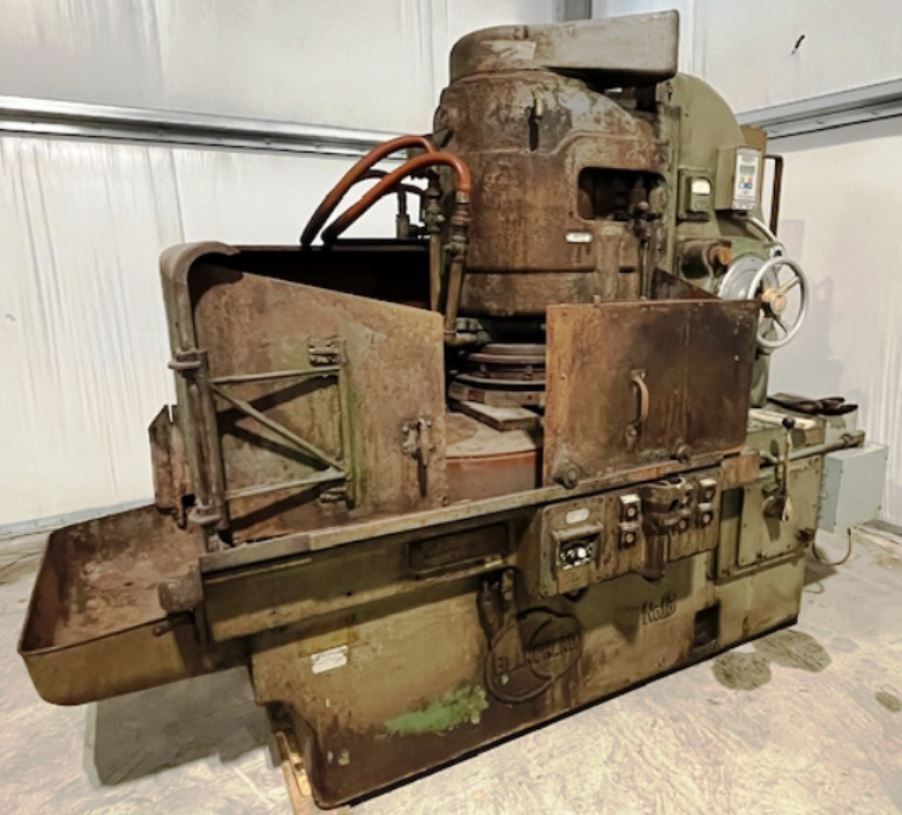

Blanchard 18-42 Rotary Surface Grinder

Specifications:

Range.......................................... 48" diam. x 21" high

Chuck diameter....................................................... 42"

Max. workload.................................................. 2,000 lb.

Wheel size (segments)...................................... 20" x 5"

Chuck speeds (6)........................................... 6 - 33 rpm

Wheel feed (variable)......................... 0.004 - 0.080 ipm

Base coolant capacity........................................ 120 gal.

Spindle motor....................................................... 35 Hp

Dimensions.............................. 111"L x 72"W x 91"H

Weight (approx.)............................................. 13,900 lb.

Equipped with:

42" Electro-magnet chuck (~1/2" life)

Segmented wheel chuck

56" Swing within water guards

12" Extended column (21" under new wheel)

Power chuck traverse

Power wheel elevation

Automatic downfeed

Neutrol II neutrofier

Wheel dresser

Coolant in base

DESCRIPTIONS ARE CORRECT TO THE BEST KNOWLEDGE OF THE SELLER BUT ARE NOT GUARANTEED.
BUYERS ARE ENCOURAGED TO CHECK IMPORTANT CHARACTERISTICS.

Please email us for a complete quotation. Include in the message your name, company name, location, and phone number.
We do not send quotations without this information.

email for a quote.
