Specifications:

Table size................................................................ 9" x 48"

Number of t-slots............................................................... 3

Longitudinal table travel................................................ 36"

Cross travel.................................................................... 12"

Quill travel....................................................................... 5"

Knee travel..................................................................... 16"

Ram travel...................................................................... 12"

Max/min distance, centerline of spindle

    to face of column.................................... 18-3/4" / 6-3/4"

Head tilt, left & right...................................................... 90°

Head tilt, front & rear..................................................... 45°

Infinitely variable speed range..................... 60 - 4,200 rpm

Spindle taper.................................................................... R8

Quill travel........................................................................ 5"

Quill feeds...................................... 0.0015", 0.003", 0.006"

Weight (approx.).................................................... 2,000 lb.

Equipped with:

Sony 2-axis digital readout

Bridgeport power feed for longitudinal travel

4" Riser block

Chrome ways

Bijur automatic lubrication system

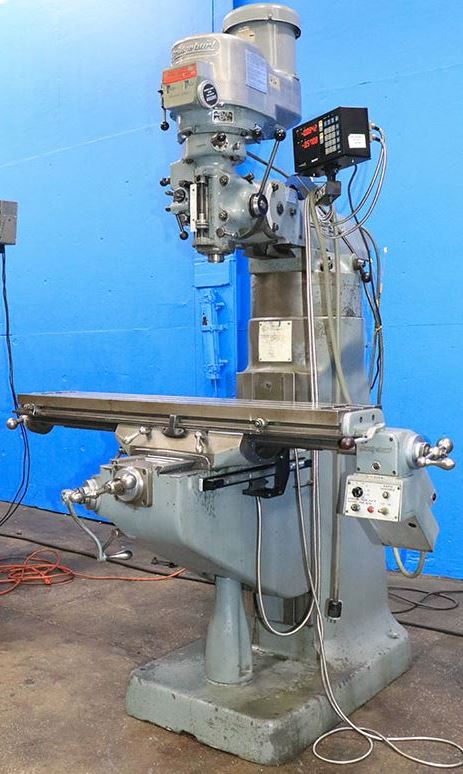

Bridgeport Series I milling head

2 Horse power spindle motor
