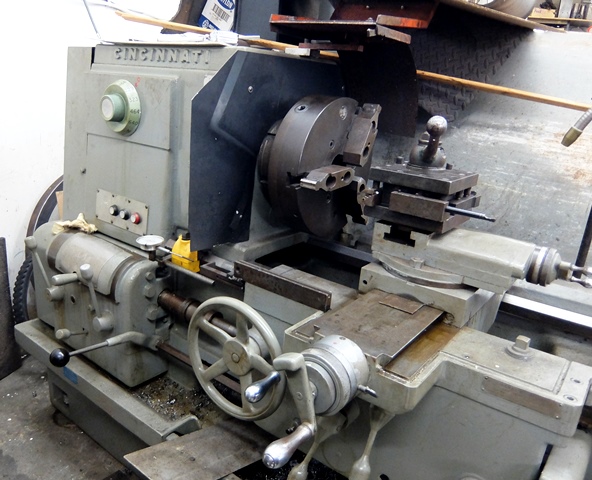

22" x 48" Cincinnati Hydrashift Lathe, New 1966

Specifications:

Swing over bed................................................................ 23-1/2"

Swing over cross slide..................................................... 13-1/2"

Distance between centers....................................................... 48"

Spindle nose (long taper key drive)…………………………. L2

Hole through spindle…………………………………… 2-5/16"

Spindle speeds (12)……………………………….. 16 - 640 rpm

Longitudinal feeds (54)…………………….. 0.0019 - 0.1215 ipr

Cross feeds…………………………………. 0.0009 - 0.0578 ipr

Threads (54)………………………………………. 1-1/2 - 92 tpi

Cross slide travel……………………………………….. 16-3/4"

Compound slide travel…………………………………... 4-1/2"

Tail stock quill travel………………………………………… 6"

Tailstock quill taper……………………………………... #5 MT

Main Motor…………………………..…… 10 Hp/3/60/230/460

Dimensions (approx.)…………………….. 80"L x 36"D x 54"H

Weight (approx.)………………………………………. 6,750 lb.

Equipped with:

Hardened ways

15" 3-Jaw chuck

4-Way tool post

Tail stock

Threading dial

Micrometer bed stop
