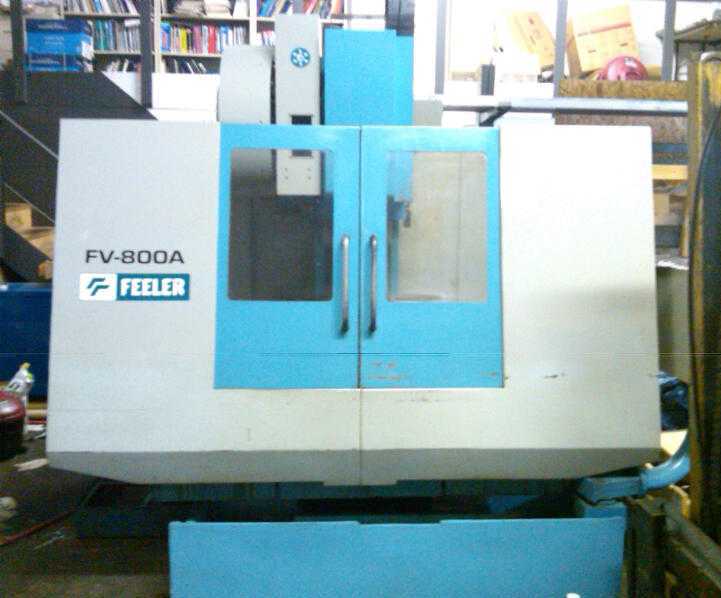

Feeler FV-800A Vertical Machining Center, New 1996

Specifications:

Longitudinal travel (X-axis)..................................... 31.5"

Cross travel (Y-axis)................................................. 17.7"

Vertical travel (Z-axis).............................................. 19.9"

Throat depth (approx.).................................................. 19"

Maximum feed rate............................................... 394 ipm

Rapid traverse X&Y............................................. 945 ipm

Rapid traverse Z.................................................... 700 ipm

Table size...................................................... 37.4" x 16.7"

Max. table load..................................................... 1,100 lb.

Spindle taper........................................................... CAT40

Spindle speed..................................................... 8,000 rpm

Spindle motor……………......................................... 10hp

Dimensions (approx.)....................... 91"W x 94"D x 95"H

Weight (approx.)................................................. 10,000 lb.

Equipped with:

Fanuc 0MC CNC Control

New spindle with approximately 200 hours

Rigid tapping

Extra work offsets and background edit

20 Station swing-arm type automatic tool changer

Miscellaneous toolholders

2 Kurt vises

High torque motor

Coolant system
