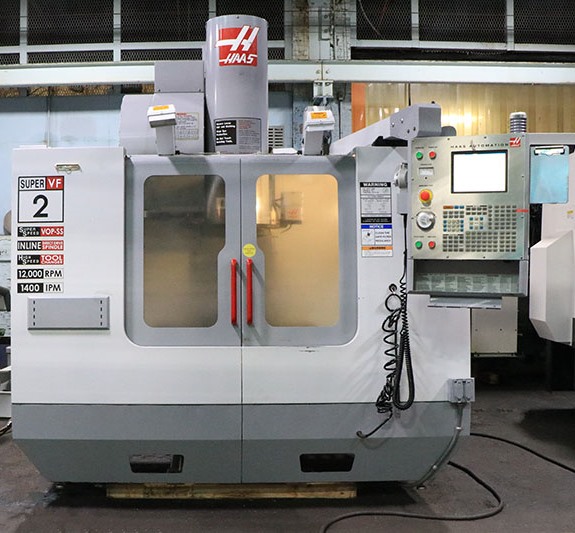

Haas VF-2SS Vertical Machining Center, New 2004

Specifications:

X-axis travel........................,............. 30"  762mm

Y-axis travel.......................,.............. 16"  406mm

Z-axis travel.......................,............... 20"  508mm

Spindle speed....................,................. 12,000 rpm

Spindle motor......................,....................... 30 Hp

Spindle drive..................,.......... inline direct drive

Spindle taper........................................,.... CAT 40

Tool magazine capacity.............................,....... 24

Maximum tool diameter/weight......... 3.0" / 12 lb.

Rapid traverse rates................................ 1400 ipm

Table size............................................... 36" x 14"

Table load capacity.................................. 1500 lb.

Dimensions (approx.).............. 89" x 92" x 104"H

Weight (approx)...................................... 8,000 lb.

Equipped with:

HAAS control with;

  rigid tapping, macros, spindle orient, DNC enabled,

  4th axis wiring & driving

Remote jog handle

Chip auger system

Programmable coolant nozzle

Coolant system

Mist collector

24 Position side-mounted tool changer

High intensity lighting
