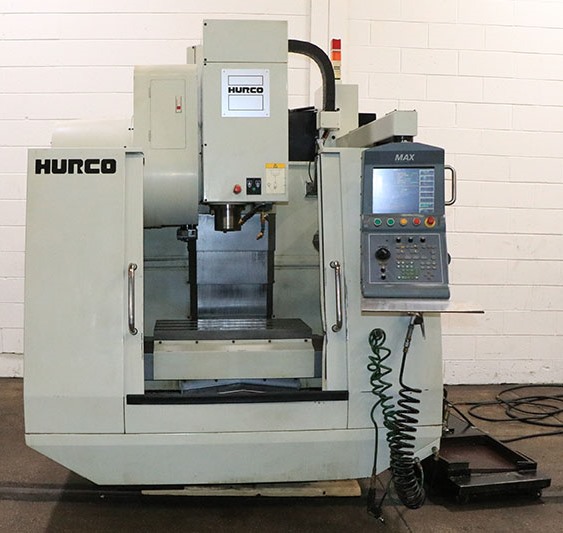

Hurco VM1 CNC Vertical Machining Center,
New 2003
Specifications:X-axis
travel.............................. 26"
Y-axis
travel.............................. 14"
Z-axis
travel............................... 18"
Max. spindle speed.................... 8,000 rpm
Rapid traverse rate (X&Y)........ 750 ipm
Rapid traverse rate (Z).............. 500 ipm
Spindle taper..............................
BT-40
Table size....................................
14" x 30"
Table load capacity..................... 750 lb.
Spindle motor………........…….. 15 Hp
Dimensions (approx.)..... 71" x 63" x
84.5"
Weight (approx.)......................... 7,000
lb.
|
DESCRIPTIONS ARE CORRECT TO THE
BEST
KNOWLEDGE OF
THE SELLER BUT ARE NOT GUARANTEED.
BUYERS ARE ENCOURAGED TO CHECK
IMPORTANT CHARACTERISTICS.
Please email us for
a
complete quotation. Include in the
message your name, company name, location, and phone number.We do not send quotations without this information.
