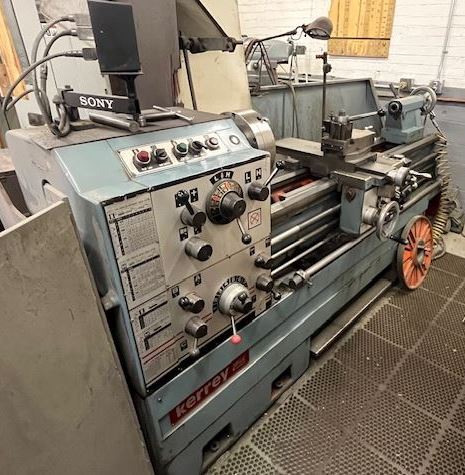

18" x 60" Kerrey Gap Bed Engine Lathe, New 1987

Specifications:

Swing over bed……………….….........…. 18.5"

Swing in gap………………………….............. 26"

Distance between centers…………….…....…  60"

Spindle bore………………………..….… 2-1/16"

Spindle nose (camlock)………………......… D1-6"

Spindle speed range (12)……......…. 20 - 1,500 rpm

Longitudinal feed range (32)...…. 0.0015 - 0.0213 ipr

Cross feed range (32)………..... 0.0005 - 0.0072 ipr

Inch threads (32)……………………...... 4 to 56 tpi

Metric threads (21)……………......… 0.5 to 7 mm

Tailstock spindle taper…………………….…. #4MT

Tailstock spindle travel………………………...… 6"

Spindle motor……………………...... 7.5 Hp/220/440

Dimensions (approx.)……...... 108"L X 40"D X 62"H

Weight (approx.)………………………....... 4,500 lb.

Equipped with:

Inch/metric threading

10" 3-Jaw chuck

19.5" Face plate

Sony 2-axis DRO

Longitudinal Trav-A-Dial

Steady rest

Aloris quick change toolpost with miscellaneous holders

Foot brake

Threading dial

Manufacturing stops

Self-contained coolant system

Chuck guard

Rear splash guard
