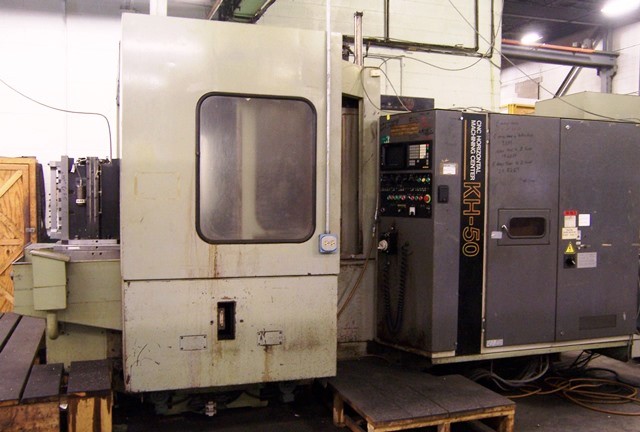

Kuraki KH-50 CNC Horizontal Machining Center, New 1987

Specifications:

 Longitudinal table travel (X-axis)……………………………… 28.3"

Vertical spindle head travel (Y-axis)…………………………… 23.6"

Cross column travel (Z-axis)…………………………………… 23.6"

Table working surface………………………………….. 19.7" x 19.7"

Min. table index angle………………………………………….. 1 deg.

Spindle centerline to table top (min/max)…………..……. 1.9" / 26.5"

Spindle nose to table center (min/max)………………..…. 5.9" / 25.6"

Max. table load…………………………………….………… 1,760 lb.

Spindle taper………………………………………………….. CAT-50

Spindle speeds……………………………………….... 30 - 6,000 rpm

Cutting feeds……………………………………..….… 0.04 - 197 ipm

Rapid traverse………………………………………………… 590 ipm

Max. tool size (diam / lgth)……………………………….. 4.3" / 15.7"

Max. tool weight………………………………………….……... 44 lb.

Spindle motor (cont./50% ED)…………………………………. 10 Hp

Electrics………………………………….….. 3ph/60Hz/220v/60KVA

Dimensions (approx.)………………………. 144"W x 236"D x 118"H

Weight (approx.)……………………………………………. 22,000 lb

Equipped with:

Fanuc 11M CNC Control w/ internal RS-232-C & Remote MPG

60 Station automatic tool changer

Twin pallet changer

Spider Cool programmable coolant nozzle

Rigid tapping

Dual chip augers (front & back)

Chip pan with oil skimmer

Enclosure

Manuals
