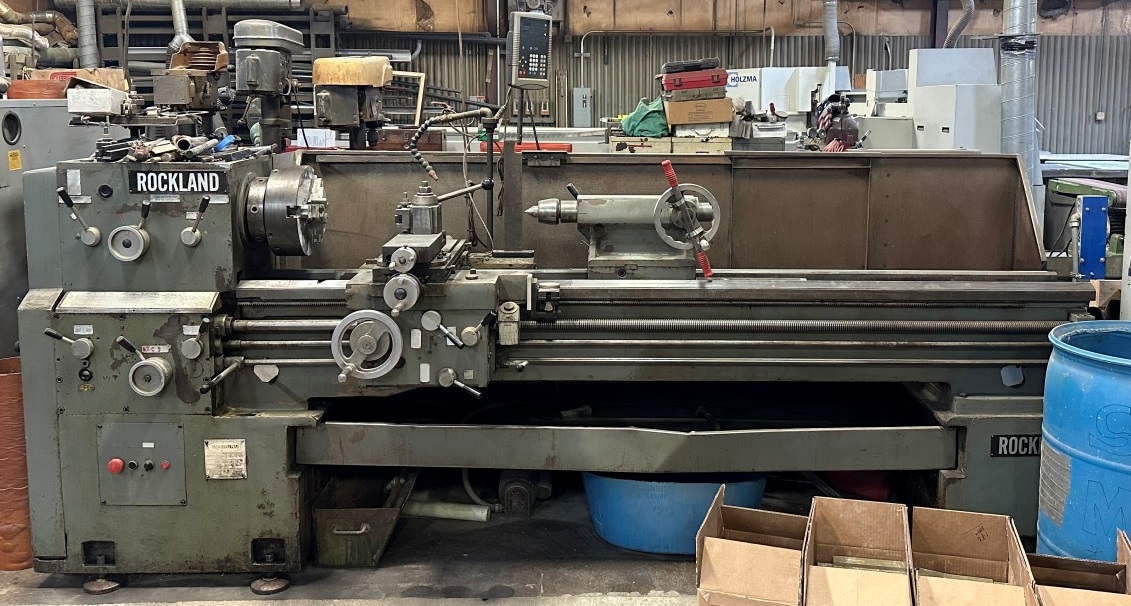

Rockland 19" x 80" Gap Bed Engine Lathe, New 1991

Specifications:

Swing over bed……………………………….. 19"

Swing over cross slide................................ 10-3/4"

Swing in gap………………………………….. 27"

Distance between centers.................................. 80"

Spindle nose (camlock)…………………..... D-1-8

Hole through spindle……………………….. 4-1/8"

Spindle speeds (12)......................... 22 – 1,500 rpm

Longitudinal feeds (56)............... 0.0009 - 0.112 ipr

Cross feeds (56)………………... 0.0004 - 0.056 ipr

English threads (56)................................ 3/4 - 92 tpi

Metric threads (35)…………………......... 0.25 - 23

Cross slide travel………………………..….. 13-3/4"

Compound slide travel……………..………... 8-1/2"

Tail stock quill travel………………………….… 6"

Tailstock quill taper……………………..….. #5 MT

Main Motor.................................................. 7-1/2 Hp

Dimensions (approx.)............. 144"L x 46"D x 60"H

Weight (approx.).......................................... 6,800 lb.

Equipped with:

12" 3-Jaw chuck

Aloris tool post

4-Way tool post

Tail stock

Steady rest

(2) Follow rests

DRO

Taper attachment

Threading dial

Longitudinal Trav-A-Dial

Micrometer bed stop

Coolant system

Chip pan
