Shigiya GUA27-100 10.6" x 39"

Universal Cylindrical Grinder, New 1984

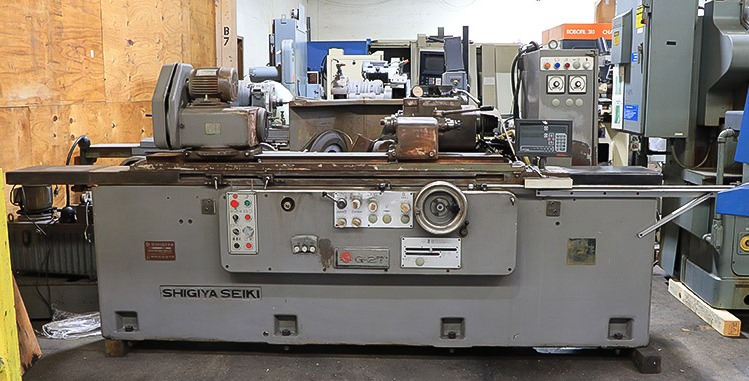

Shigiya GUA27-100 10.6in x 39in Universal Cylindrical Grinder

Specifications:

Swing over table……………..…. 10.6"

Distance between centers…….… 39"

Wheelhead

  Spindle speed……………….… 1660/1880 RPM

  Maximum stroke………………... 8.5"

  1 Revolution of handwheel…….. 0.04"

Automatic infeed

  Longitudinal grinding (in/stroke). 0.00004 – 0.004

  Plunge grinding (in/min)…….…. 0.0008 – 0.06

Wheel size……………………..… 14" x 1"-2" x 5"

Worktable swivel range(total)….... 7°

Longitudinal table speeds……..…. 2 - 120 ipm

Workhead speeds (9)…………..… 20 - 380 rpm

Workhead swivel range(total)……. 120°

Workhead spindle taper………..… #4 MT

Handle infeed rate

  One revolutuion…………...……... 0.04"

  By microfeed…………………….. 0.0001"

Tailstock quill taper………….….... #4 MT

Wheelhead motor……………......... 5hp/3/60/230/460

Workhead motor………………...… 0.4hp/3/60/230/460

Dimensions (approx.)……………... 150"L x 68"W x 61"H

Weight (approx.)……………….….. 9,250 lb.



Equipped with:

Full automatic cycle

Independent sparkout timers for infeed and plunge

Adjustable table dwell

Optional coarse/fine infeed position control knob

Rapid wheel head advance/retract

Plunge grinding

Motorized workhead with dual live/dead spindle

  and hydrostatic bearings

Digital readout

Automatic lubrication

Coolant system

Presently wired for 3/60/220


DESCRIPTIONS ARE CORRECT TO THE BEST KNOWLEDGE OF THE SELLER BUT ARE NOT GUARANTEED.
BUYERS ARE ENCOURAGED TO CHECK IMPORTANT CHARACTERISTICS.

Please email us for a complete quotation. Include in the message your name, company name, location, and phone number.
We do not send quotations without this information.


email for a quote.
